Description

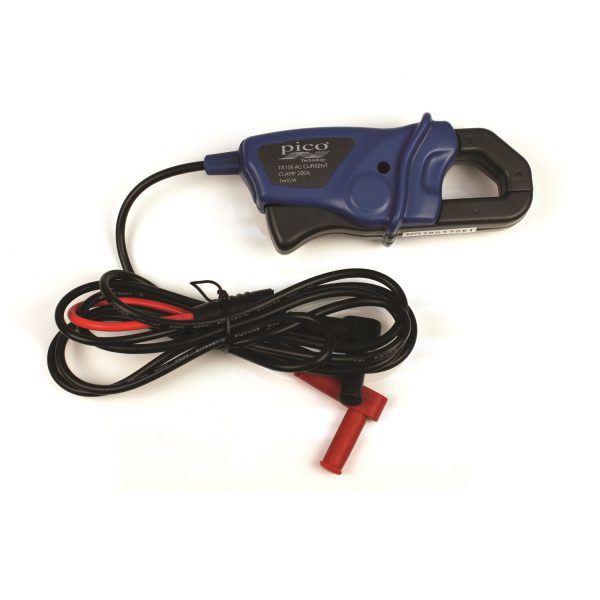

Not being powered by batteries this unpowered current clamp is ideally suited to applications where current consumption is being monitored over long periods of time. Supplied with 4 mm (banana) plug type connectors.
| TA138 Current Clamp Specifications | |
| Range 1 mV/A 10 mV/A |
0.1 A to 200 A AC RMS |
| Accuracy | ±2%, ± 0.5 A |
| Output voltage 1 mV/A 10 mV/A |
1 mV AC per 1 A AC 1 mV AC per 0.1 A AC |
| Maximum output impedance | 1 kΩ |
| Maximum conductor size | 16 mm |
| Output connectors | 4 mm banana plugs |
| Operating environment | 0 °C to 50 °C |
| Storage environment | -30 °C to 60 °C |
| Dimensions (W x L x D) | 111 x 50 x 33 mm (approx 4.3 x 1.9 x 1.3 in) |
| Weight | 129 g (approx 4.5 oz) |
| Standards | IEC1010-1 (1995); EN61010-1 (2001) Category II 600 V Category III 300 V |
